Home - Products -Video Wall Controller

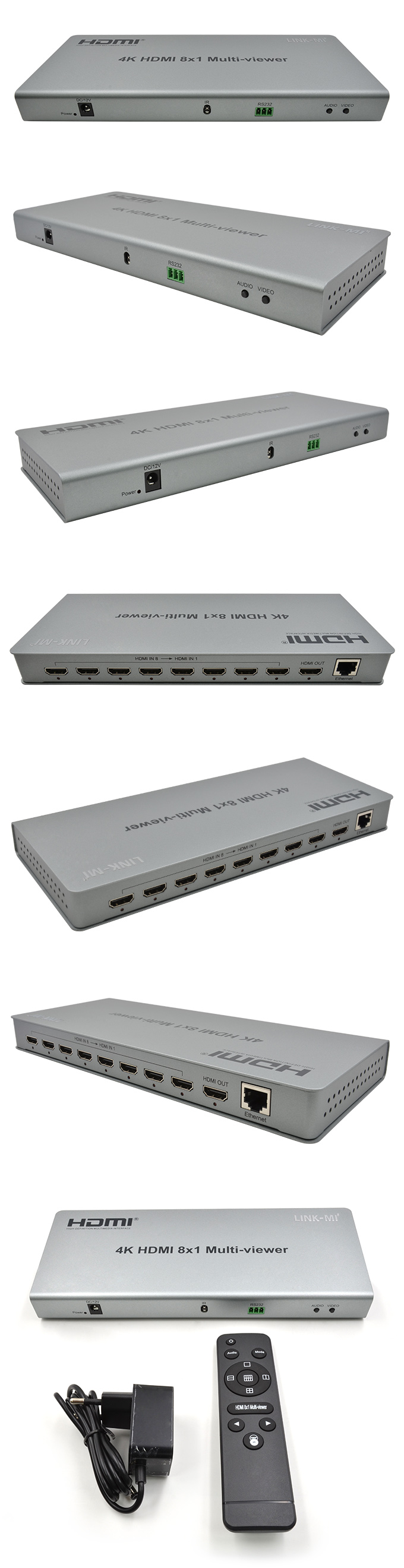

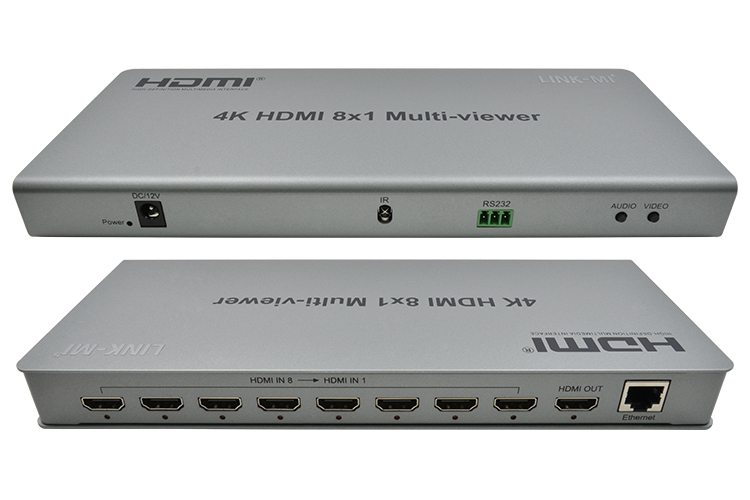

LINK-MI LM-S81F-4K 8x1 HDMI Multi-viewer with Seamless Switching, Support 4K@30Hz

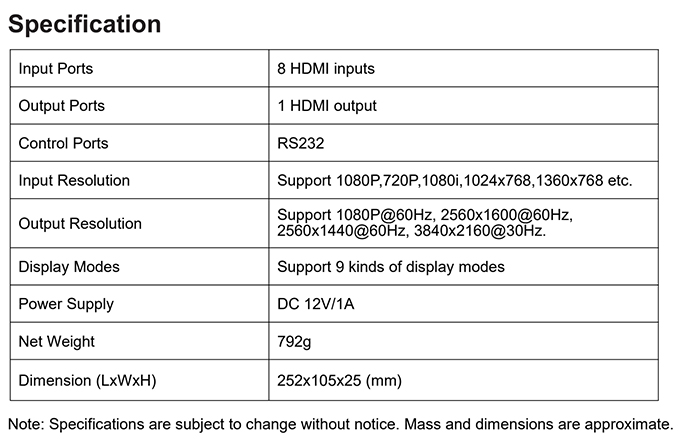

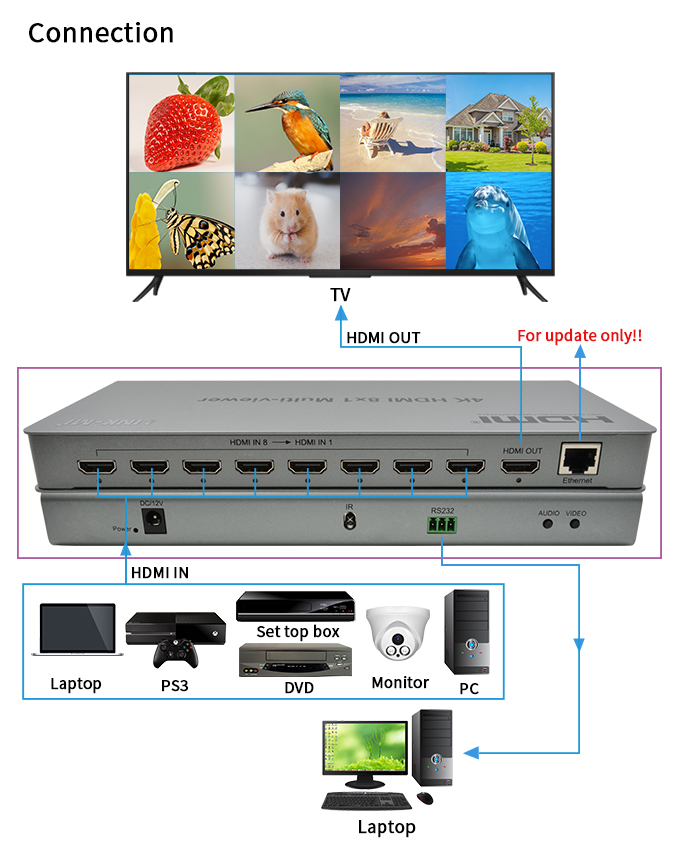

1. Support 8 HDMI inputs, 1 HDMI output.
2. Support 8 HDMI signal screen segmentation.
3. Support 8 HDMI signal seamless switching.

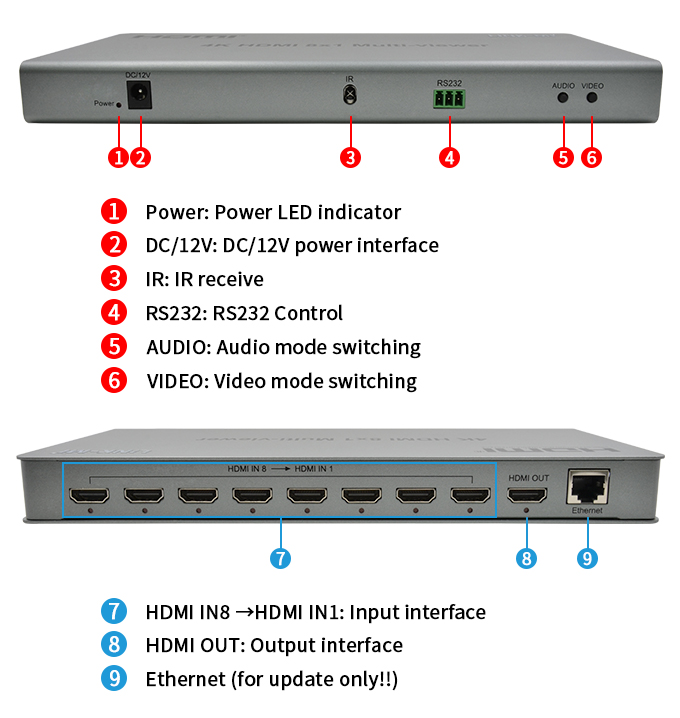

4. Support multiple control ways by button, IR, RS232.
5. Compatible HDMI 1.4, HDCP 1.4, and DVI 1.0 version.
6. The input resolution support 1080P,720P,1080i,1024x768,1360x768 etc.
7. The output resolution support 1080P@60Hz, 2560x1600@60Hz, 2560x1440@60Hz, 3840x2160@30Hz.
8. Support audio and video superposition.
9. More clearer subtitles.
10. HDMI input and output transmission distance: high speed HDMI cable can reach 15m.
