LM-SH41K

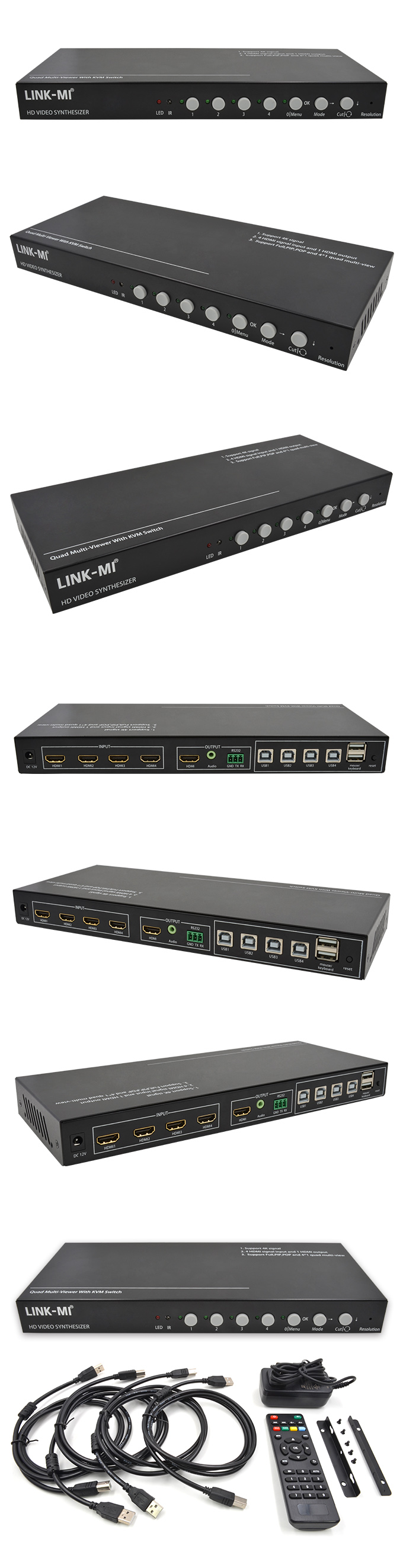

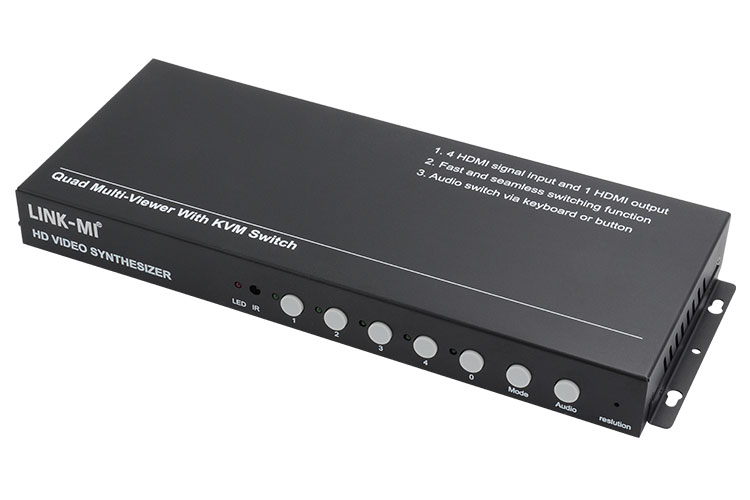

LINK-MI LM-SH41K 4x1 HD Multiviewer with KVM

Introduction:

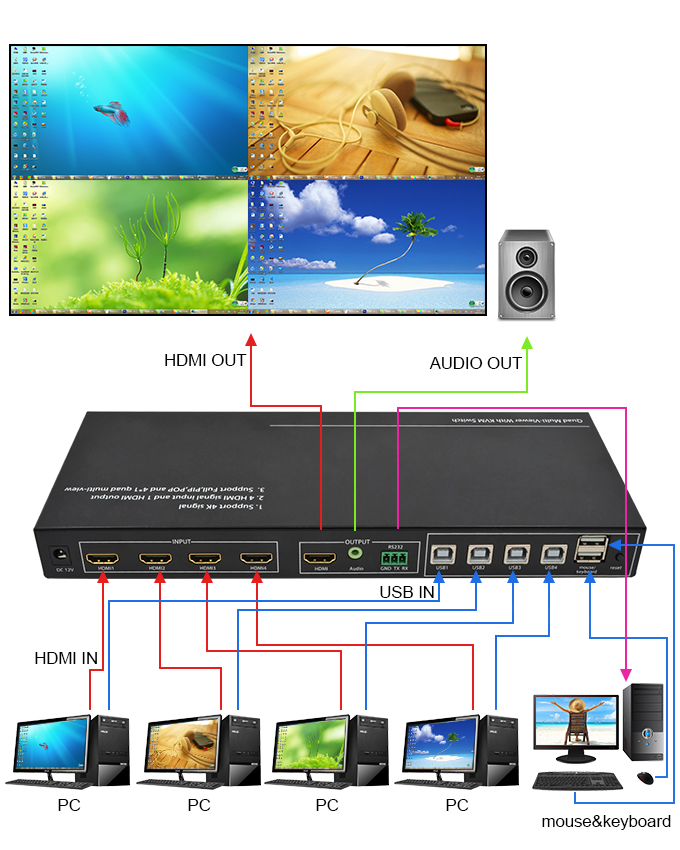

1. A single display unit supports four-split, left-right two-split, up-down two-split, full-screen display modes;
2. 4 HDMI signal input, HDMI signal embedded audio;
3. 1 HDMI output, HDMI signal embedded audio, support signal output with maximum resolution of 1920x1080;
4. One independent 3.5mm audio port output can be connected to the sound;
5. Audio follow screen switching function, or switch audio separately in split mode;
6. 2 USB signal outputs, USB supports connecting mouse and keyboard;
7. KVM switch function, switch screen display mode, audio switch, quad split mouse through function by keyboard hot key;
8. Support seamless switching of the second-cut function, all single-screen or different split modes switch without black screen;
9. It also supports chassis keys, infrared remote control, and keyboard hot key control functions.

Description
