LM-TV12M

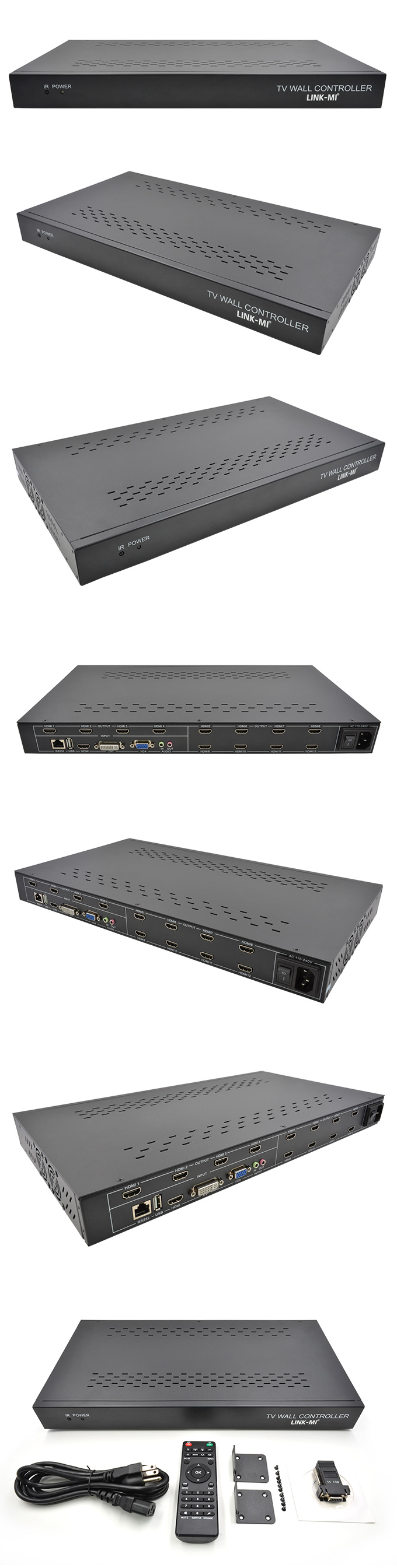

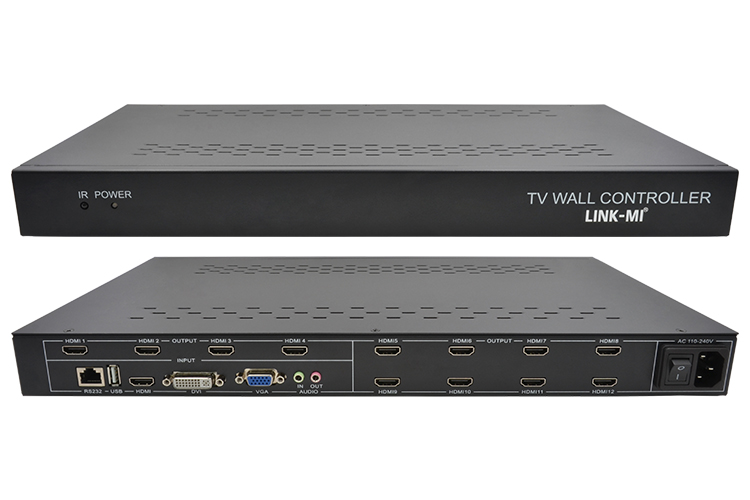

LINK-MI LM-TV12M 3x4 Video Wall Controller with Zoom Function, 1080P

Introduction:
1.Support Cascading Function. Can be cascaded to achieve maximum 255 signal outputs (Need more controllers);
2. Support High Resolution 1080P signal input and output;

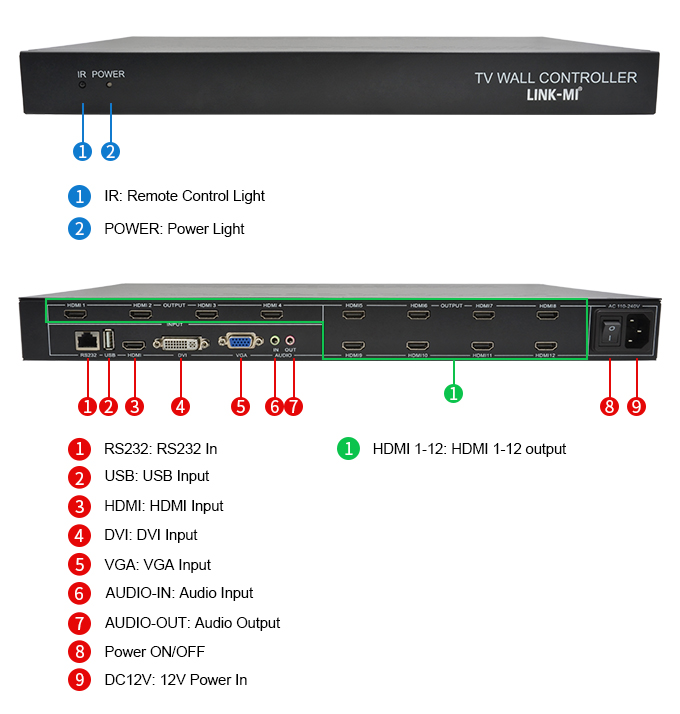

3. Support Multiple Control Methods: infrared remote control, front panel buttons, central control via RS-232;

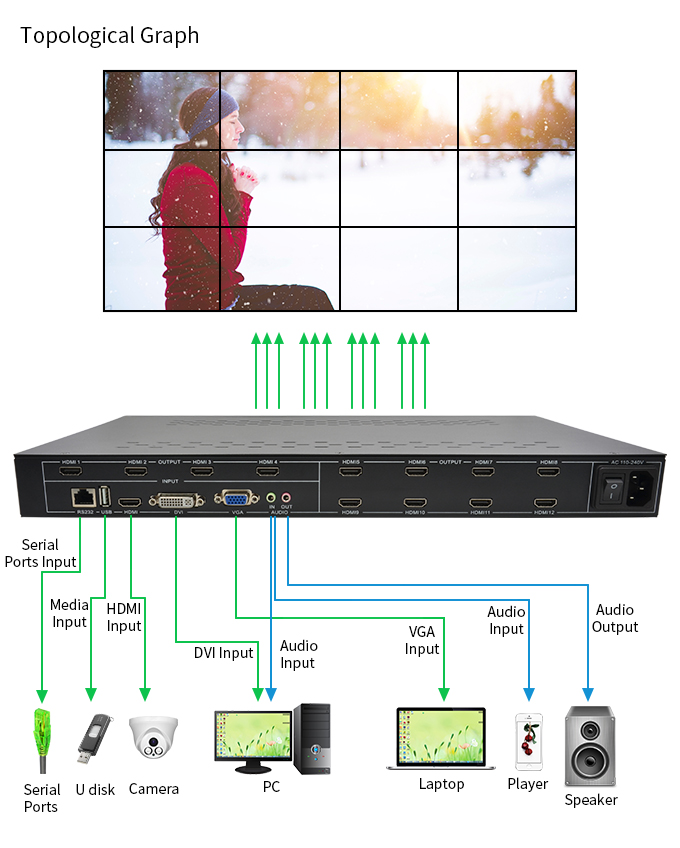

4.Support Multiple Signal Input. Support 1 way VGA, 1 way DVI , 1 way USB, 1 way HDMI input, all input signals can be switched to large screen for splicing display;
5. Support Audio Input and Output, and audio and video output synchronously;
6. Support 180 Degree Rotation. Any one of the 12 splicing screens supports 180 degree rotation/flipping;
7. Built-in Flying Caption Function;
8.Built-in Image Zoom and Cutting Function;
9.Support Border Blanking Technology;
10. Support USB access;
11. Support Remote Control via Remote up to 7 to 10 meters.
