LM-VW02B |
|
| LINK-MI LM-VW02B HDMI 2X2 4K Video Wall Controller with USB TYPE-C /DVI /2-port HDMI Inputs |
| |
Introduction:

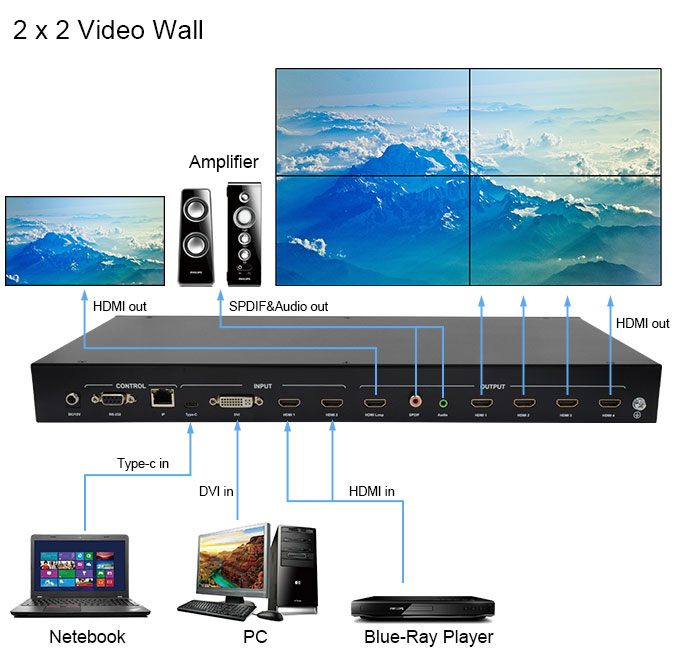

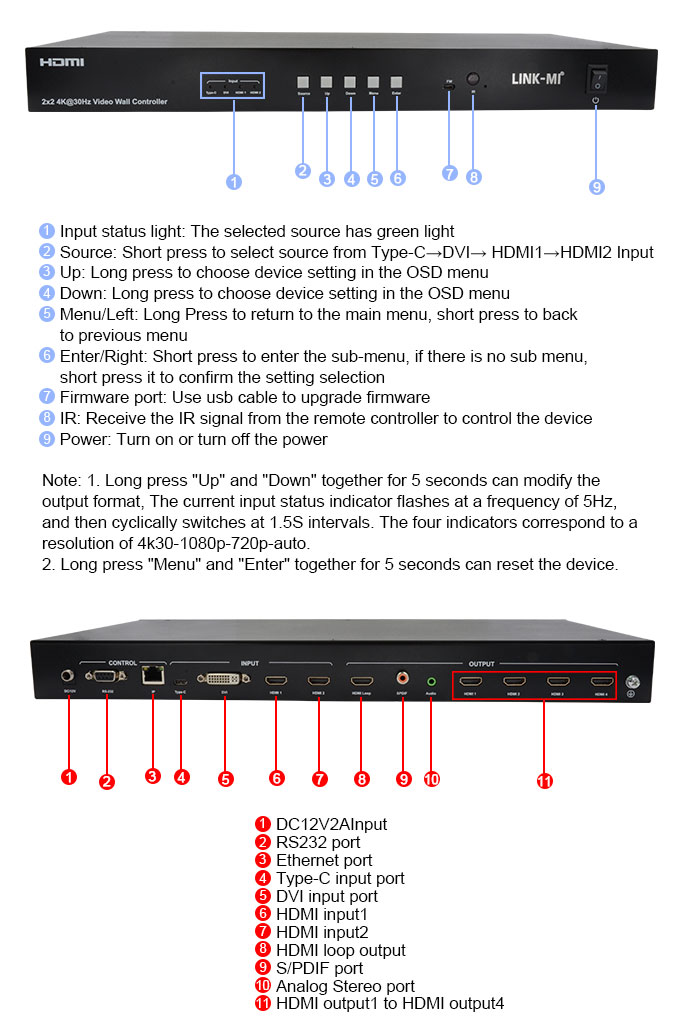

1. Support USB TYPE-C /DVI /2 HDMI input.2. Support 4K 2x2 video wall, cascading to create 2x3,3x4 and max 10x10 video wall.3. Support output image 180° rotation.4. Support highest resolution up to 4K@30HZ 4:4:4 for Type-C and HDMI inputs, 1920x1200 for DVI input.5. Support EDID management:Two default EDID: 4K30HZ, 1080P.6. Support HDCP2.2/1.4.7. Support panel button; IR remote; RS232 command and Web GUI to control.8. Support SPDIF andAnalog audio extraction9. 1U rack design, easy installment.10. DC 12V 2Apower supply.11. Unit size:L438XW190XH44 mm. |
|
|
| |
|
|
|
|
