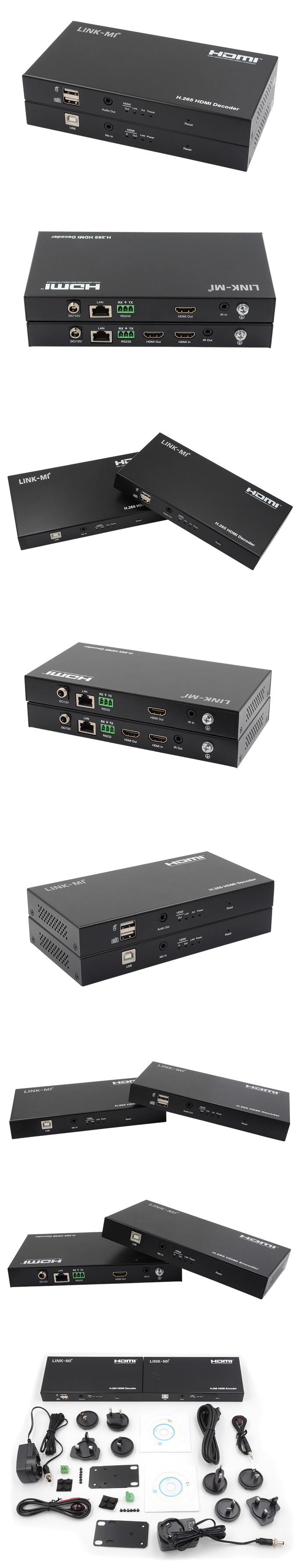

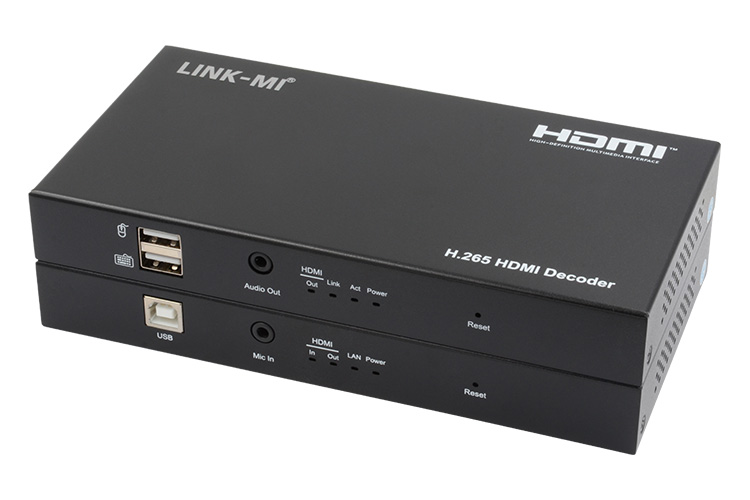

LINK-MI LM-UHE01 120M H.265 AV over IP Extender work with CMPSystem

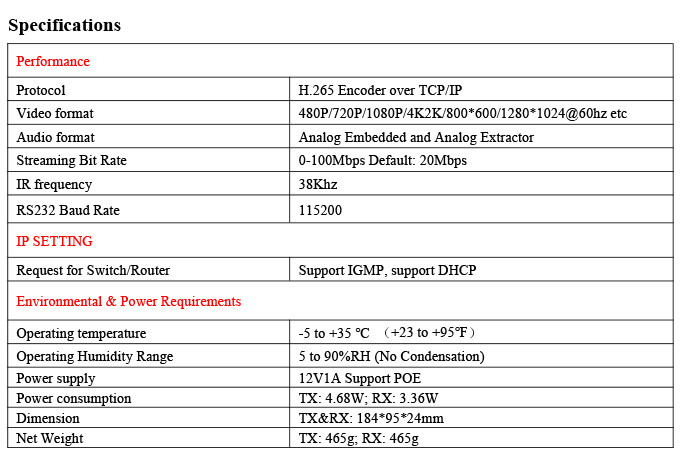

1. Compression Technology: H.265
2. Max resolution 4K@30HZ YUV 4:4:4
3. Latency Time (from TX to RX) less than 200 millisecond
4. Transmit up to 120m over single Cat5e/6 cable, with 1x looping HDMI output
5. Request for (many to many mode) IGMP Switch
6. Support IP/ICMP/IGMP/TCP/UDP Control (PC Tool)

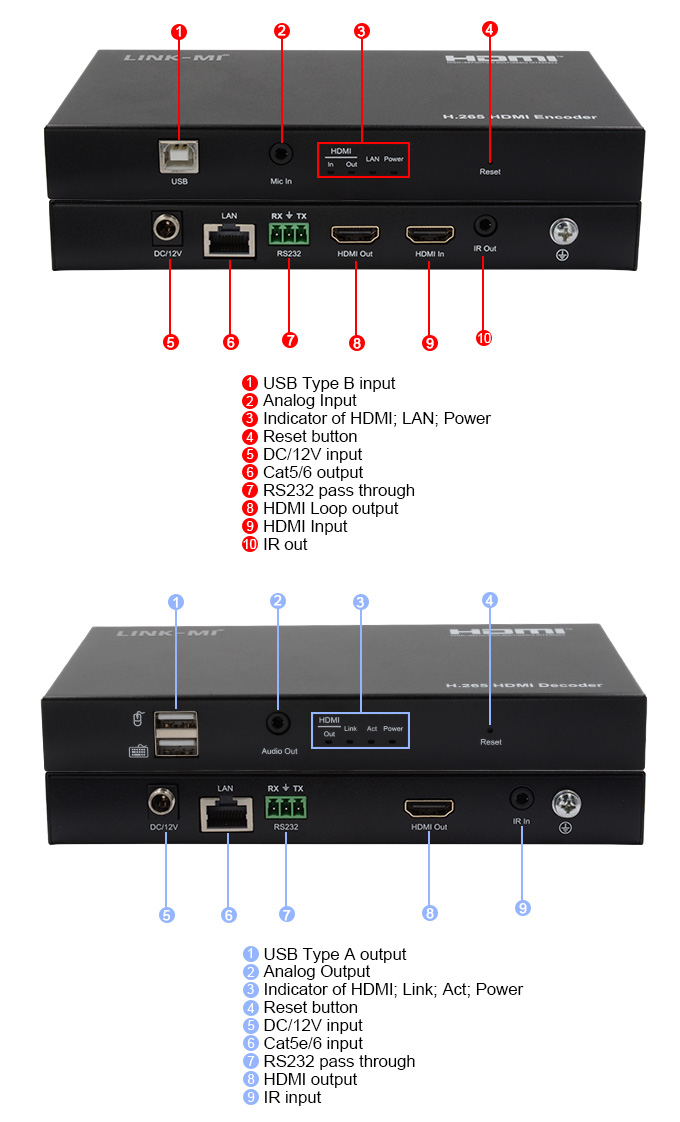

7. Support KVM RS232, IR, Local HDMI output on TX
8. Additional Features VLC / Looping HDMI output
9. Support RTSP/RTMP protocol

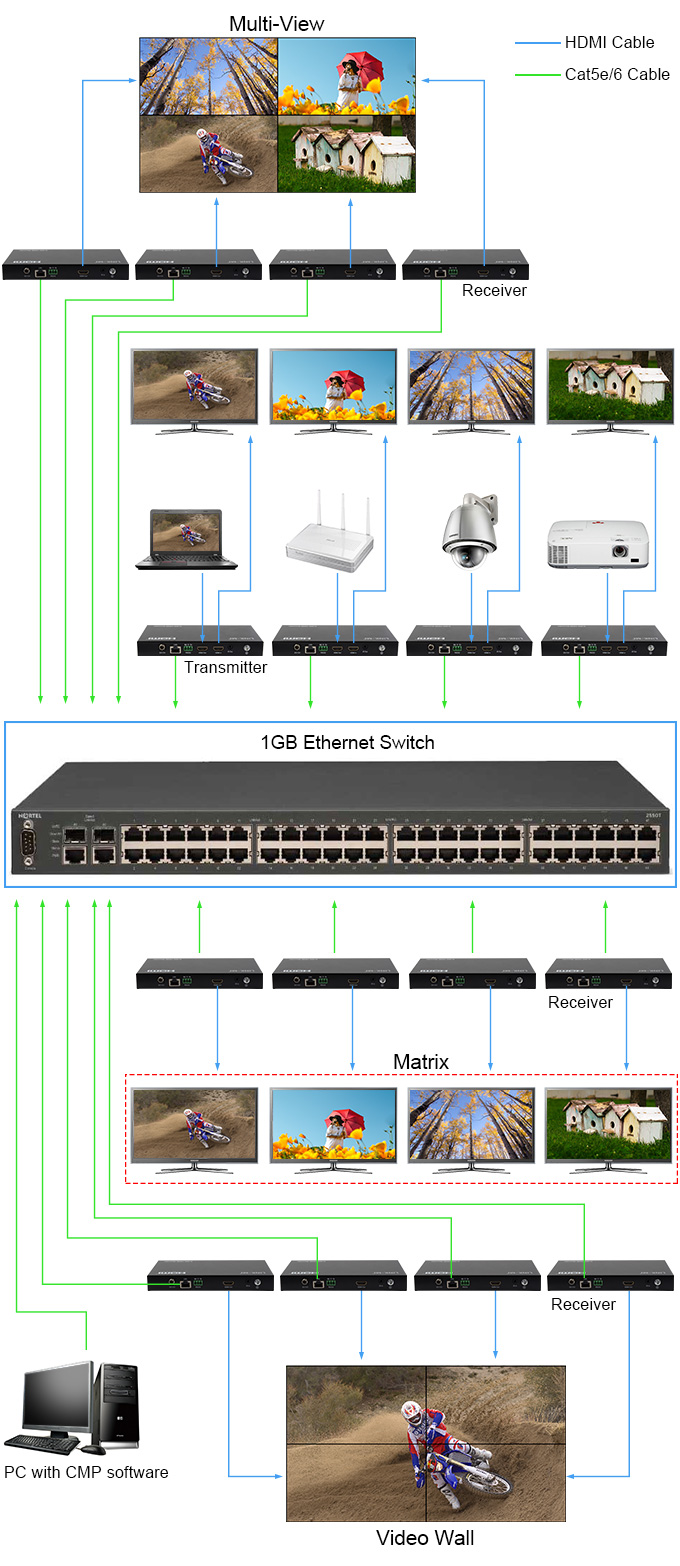

10. Support Video Wall, Multi Viewer, Matrix work with CMP system supports real-time switch
OSD; Displaying firmware version, IP address, MAC address, etc
11. Support Multicast(one to many, many to many), Unicast (one to one)
12. DC12V Power supply
