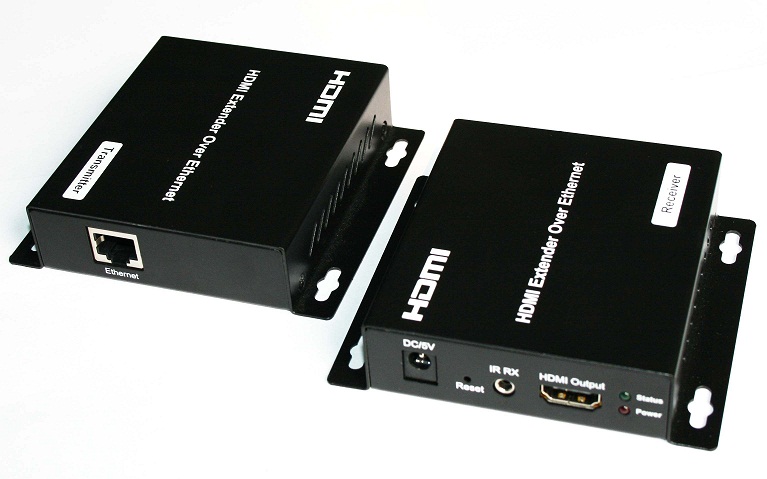

LINK-MI LM-EX22 HDMI Extender 120m Over IP
1.Compliant HDCP 1.2
2.Uses off-the-shelf gigabit IP switches for extension and distribution
3.Extends 1080p HDMI signals up to 120m over a single UTP Cat5e/6 cable
4.Flexible and scalable HDMI 1080p Video Wall Broadcasting with Gigabit Ethernet LAN
5.Multicasting and broadcasting architecture, adding more displays without adding LAN bandwidth loading

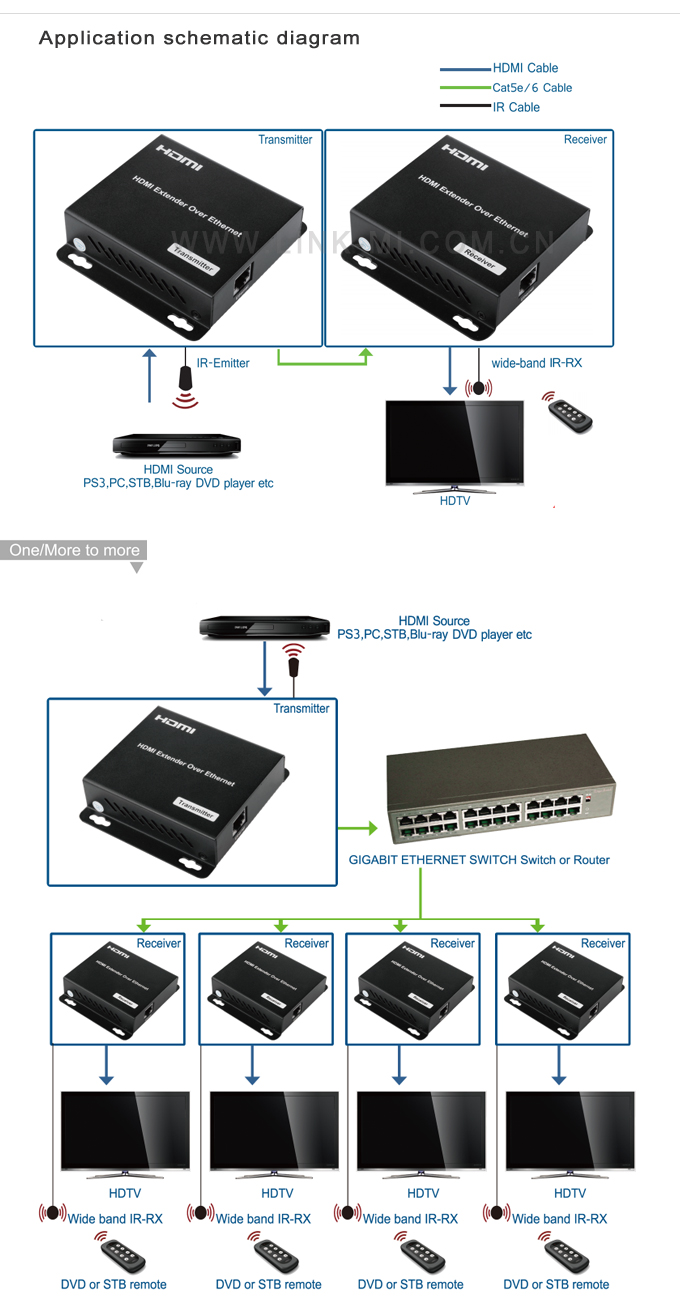

6.Support Point-to-Point, Point-to-Many and Many-to-Many network configuration
7.With IR Control function ,it allows you control back the source at the end of destination
8.Can be cascaded for many layers by adding Ethernet switches







 Model No.









 Extend HDMI Signal up to 120m over cat5e/6 cable

 Operating Temperature Range

 -5 to +35 Degree Celsius ( +23 to +95 Degree Fahrenheit )

 Operating Humidity Range

 5 to 90%RH ( No Condensation )

 Video Format

 DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p

 Video Output


 Input Video Signal

0.5-1.0 Volts P-P

 Input DDC Signal

 5 Volts P-P ( TTL )

 Transmission Distance

 1080p@60Hz 8 bit 120m ( Maximum ) Over Single Cat5e/6/24AWG/Solid

 Power Supply

 DC 5V 1A

 Power Consumption

 3 Watts ( Max. )

 Dimension ( L*W*H )


 IR Wavelength & Frequency Range

Wavelength: 940nm, Frequency: 38KHz

 Net Weight

 TX: 220g; RX: 220g

 TX & RX

Default IP Address:;

MAC Address: 00:0b:78:00:60:01

Default IP Address:;

MAC Address: 00:0b:78:00:60:02

Packing Contents

1. Main Unit. HDMI Extender Transmitter & Receiver

2. 2pcs DC 5V 1A Power Adapter

3. IR-TX Cable & IR-RX Cable

4. Operating Instructions
