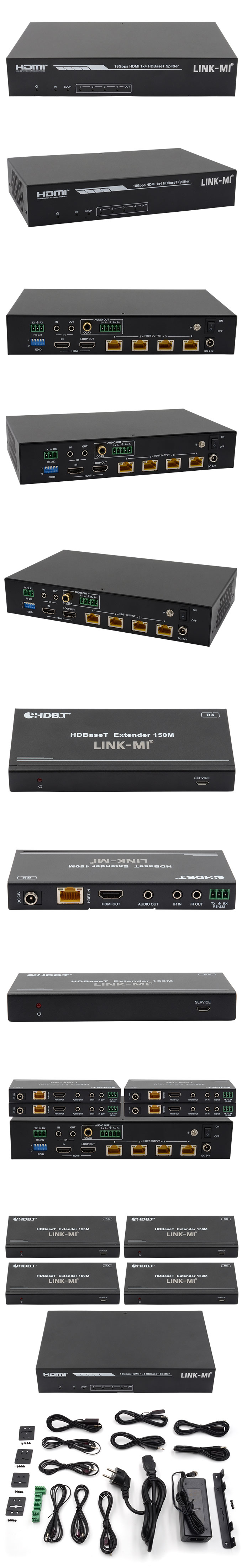

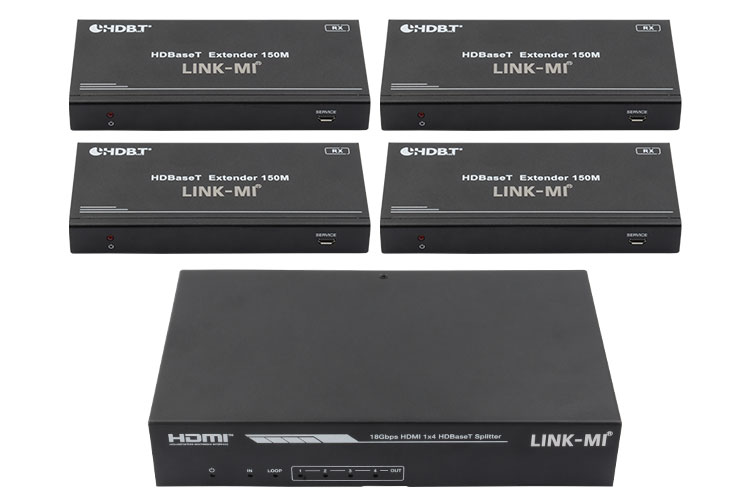

LINK-MI LM-SPH14-150 18Gbps HDMI 1×4 HDBaseT Splitter
1. HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
2. Support 18Gbps video bandwidth
3. Support video resolution up to 4K2K@60Hz 4:4:4
4. Support HDR, HDR10+, HLG and Dolby vision
5. Support up to 7.1CH HD audio pass-through
6. Support digital and analog audio de-embedded output
7. Extend the signal transmission distance up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable

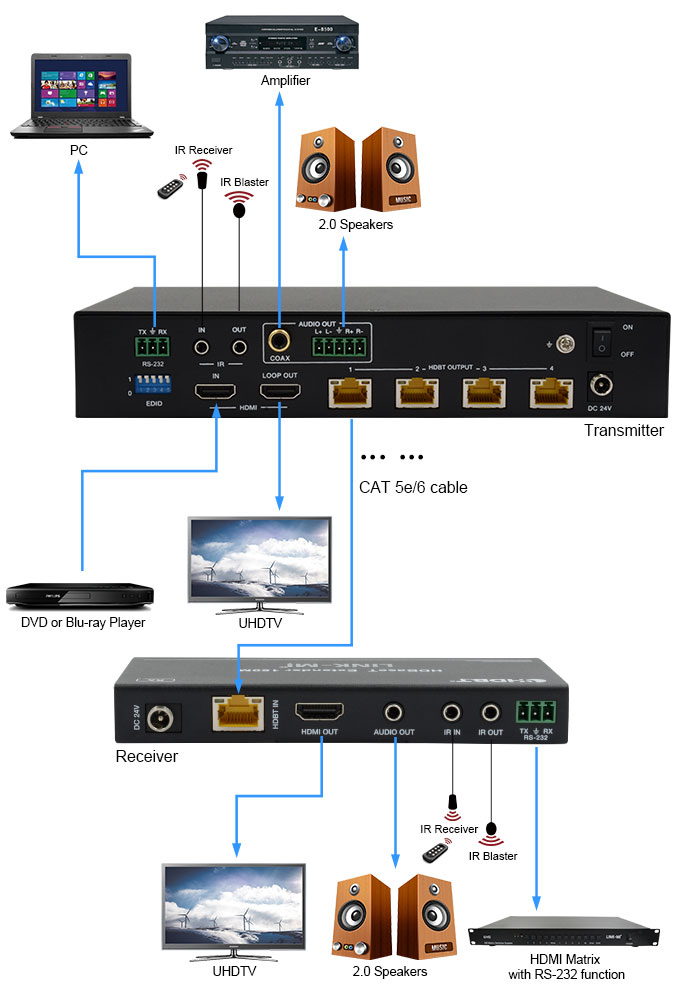

8. Support 1 HDMI input, 1 HDMI loop output and 4 HDBaseT outputs.
9. IR, RS-232 routed to HDBaseT output
10. Advanced EDID management
11. Support one-way POC function (only from transmitter to receiver)
12. Compact design for easy and flexible installation
