LINK-MI LM-SPH06-70 1x8 HDMI 2.0 HDBaseT Splitter support 4K2K
1. Incorporates HD Base-T technology

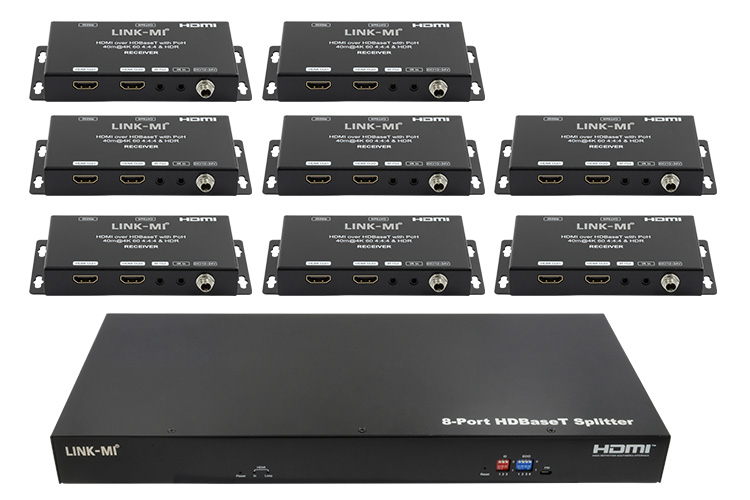

2. Distributes 1 HDMI source to 8 HDMI Displays simultaneously with 1xlooping HDMI output
3. Input HDMI resolution max up to 4K@60hz YUV 4:4:4
4. HDBaseT output up to 4K@60hz YUV 4:2:0
5. HDMI output up to 4K@60hz YUV 4:4:4
6. Extends HDMI and IR up to 70 meters using one CAT5e (or better) cable
7. Supports high bit-rate audio formats (Dolby True-HD / DTS Master Audio )
8. Support RS232, EDID
9. Compliant HDCP 1.4 and 2.2

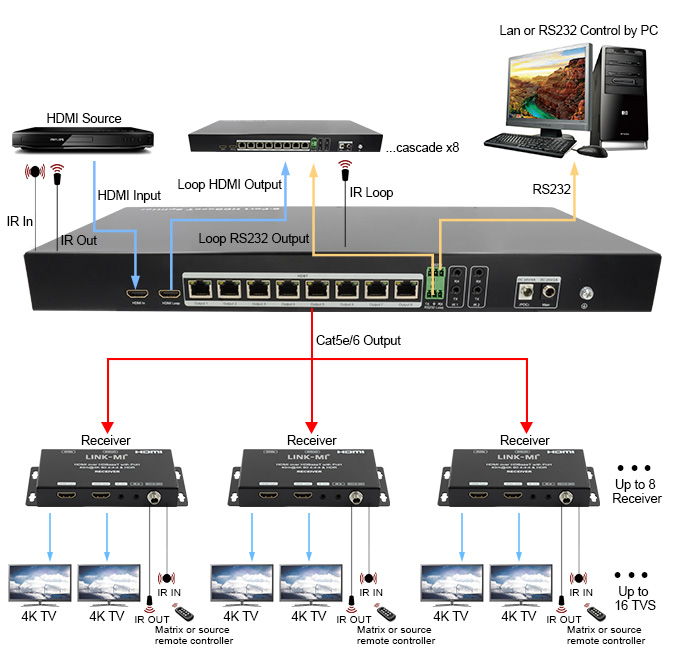

10. Support Cascade to 8 layers
